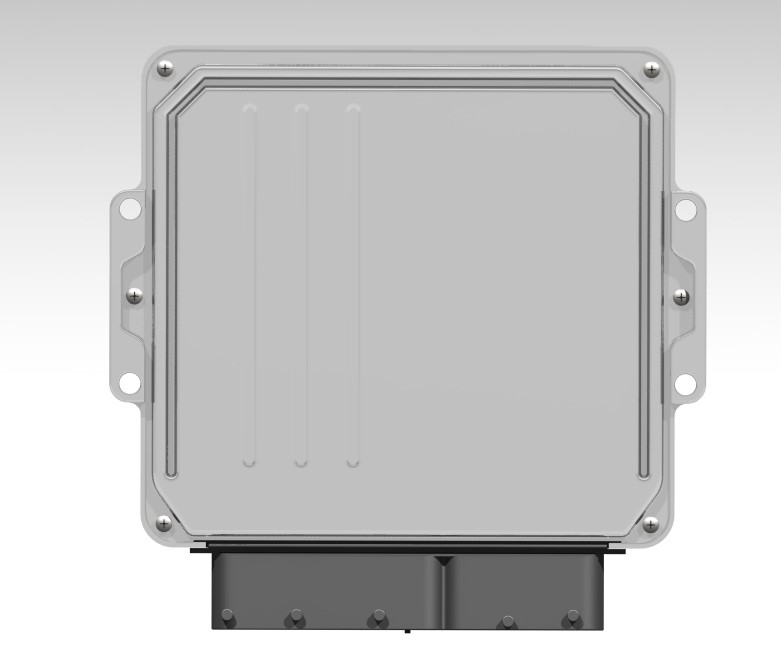

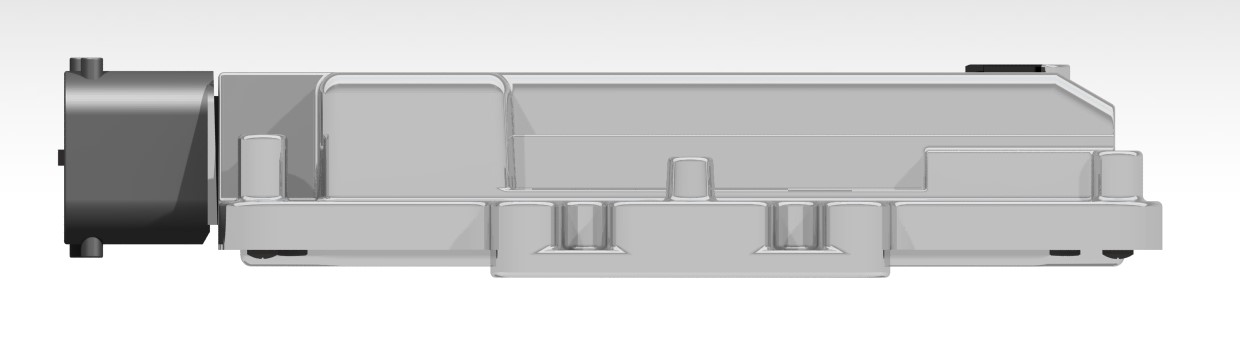

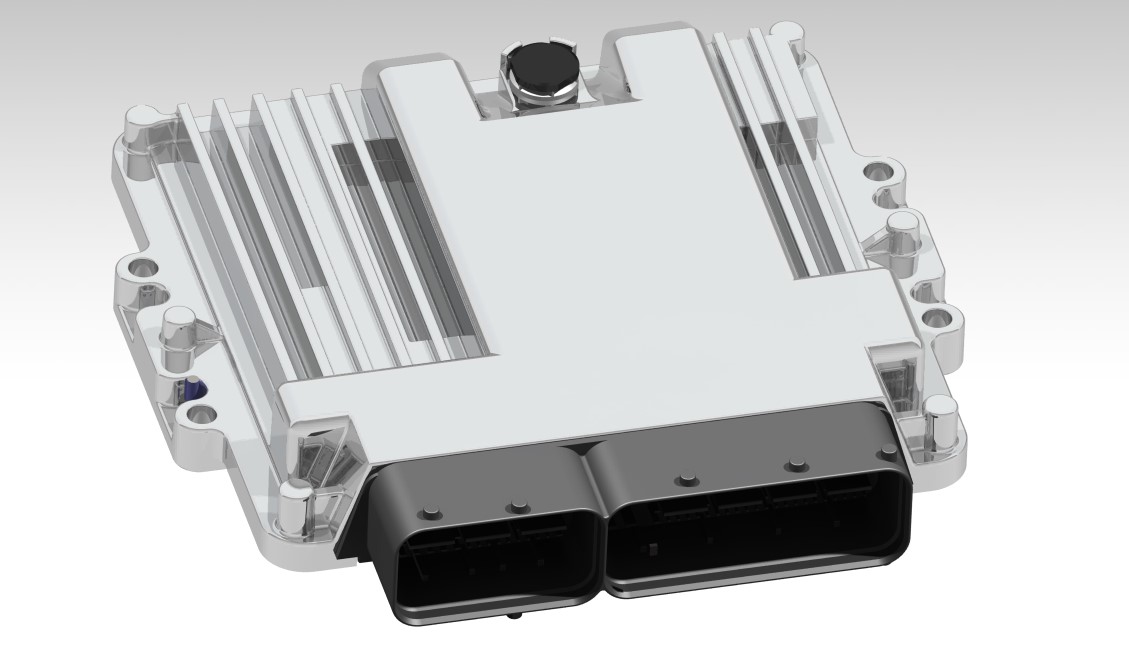

Gasoline Direct Injection (GDI) engine management system

1.  Introduction of product function

l  Satisfaction to the regulatory requirements of national standard GB18532/GB34660

l  Support CAN-UDS diagnosis agreement like ISO15031/ISO15765  electronic thermostat, variable oil pump, intelligent generator and other engine control technology

l  It is equipped with vehicle functions such as PTO, ACC, electronic pump, one-key idle speed increase, collision fuel cut-off, PEPS and hill starting

l  Support the system functions like OTA, remote vehicle lock, limp home and stop timing.

l  Support the gearbox control matching of MT, AMT and AT.

2. Introduction of product performance

l  MCU:32 digits 3 cores *300M dominant frequency，6M Flash LPBGD292Pin

l  Working temperature:-40°~105°C

l  Level of protection: IP69

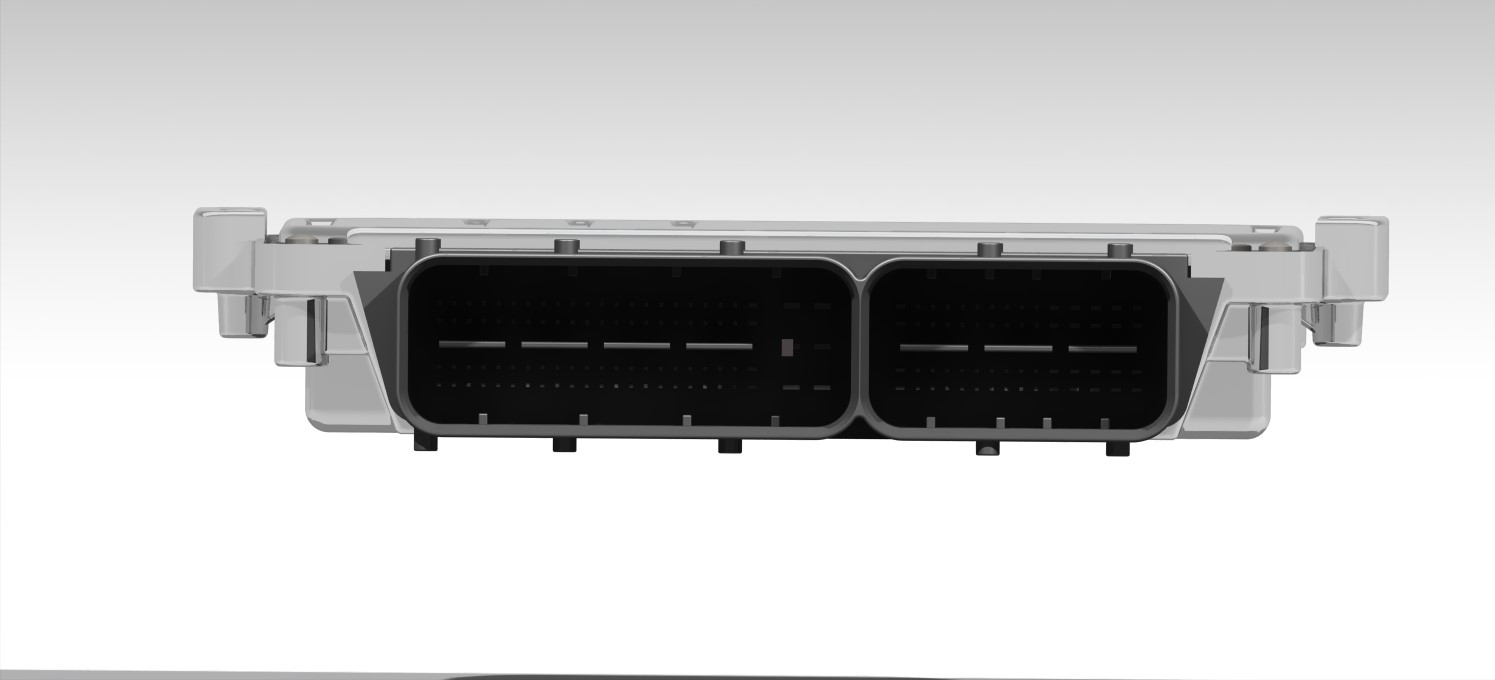

l  Peripheral interface：154PIN

l  Static power：<1mA

l  Bridge 5 channels

l  Sent input: 6 routes

l  CAN interface (support CANFD) 3 routes

3. Product application scope

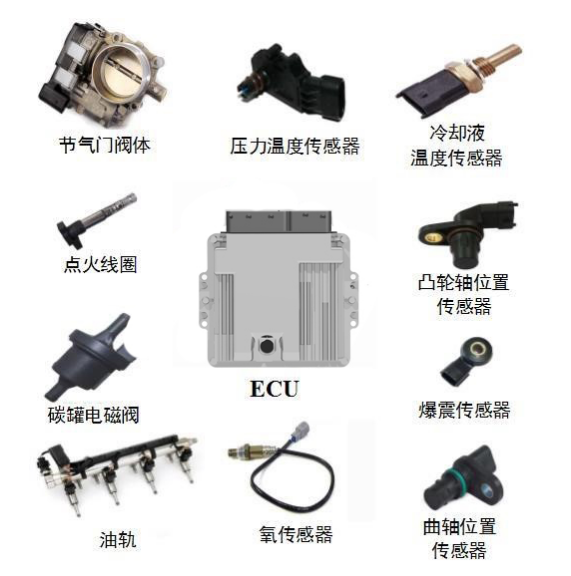

l  It can be applied to 1.2~2.0 displacement 3/4-cylinder full series of GDI engine. It can support advanced engine control strategies like DVVT, EGR valve, variable oil pump, electronic thermostat, PDA and intelligent generator. It can support vehicle functions like PTO, cruise control, collision fuel cut-off and PEPS. It can support standard UDS agreement including ISO15765/ISO15031 and etc. It can support online flash OTA, remote vehicle lock, remote diagnosis and the gearbox control match for MT, AMT and AT.
